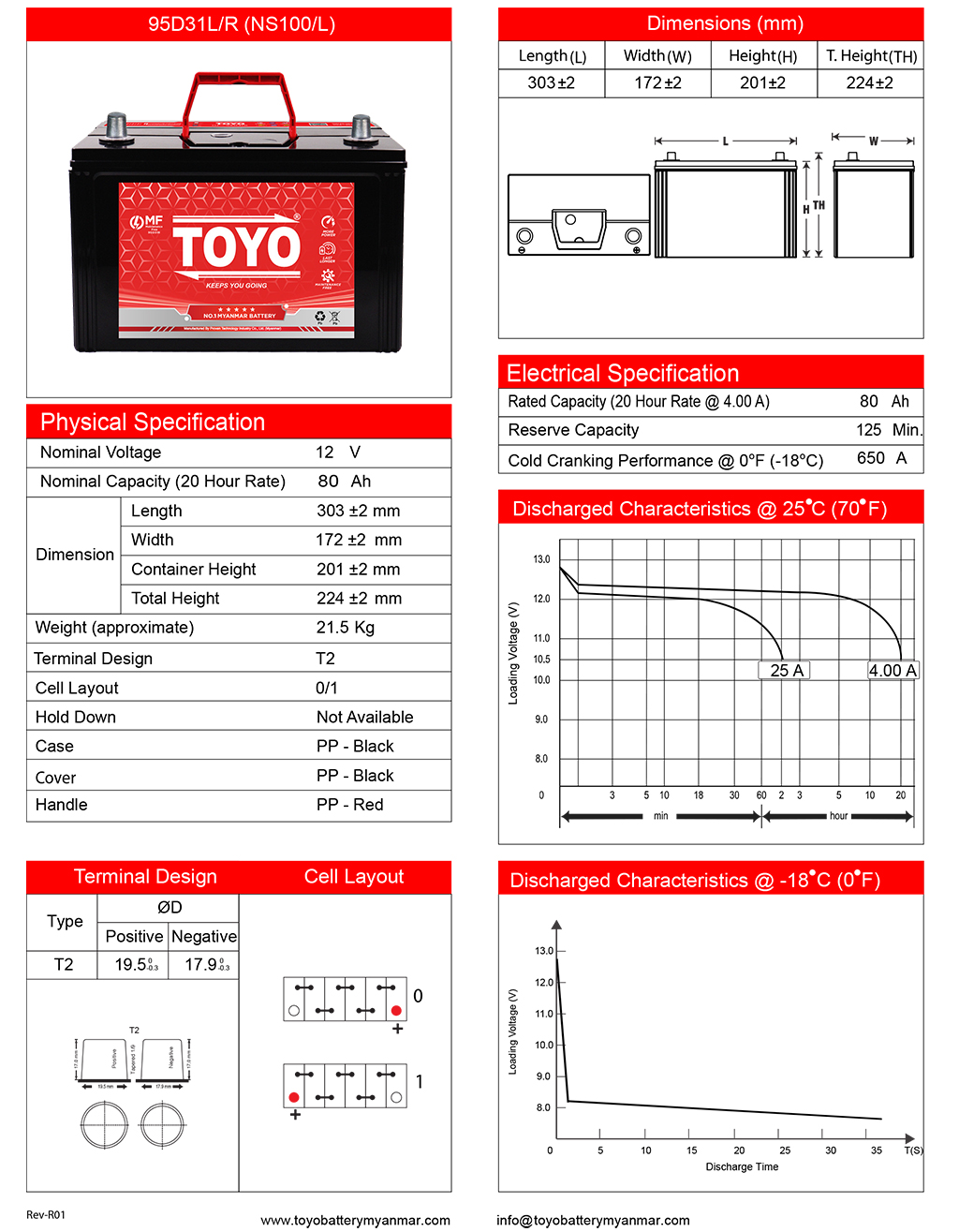

95D31L/R (NS100/L)

Maintenance Free
Dimensions (mm)
Length (L) Width (W) Height(H) T.Height(TH)
303±2 172±2 201±2 224±2
Physical Specification
Nominal Voltage 12 V
Nominal Capacity (20 Hour Rate) 80 Ah
Dimension Length 303±2 mm
Width 172±2mm
Container Height 201±2 mm
Total Height 224±2 mm
Weight (approximate) 21.5 Kg
Terminal Design T2
Cell Layout 0/1
Hold Down Not Available
Case PP – Black
Cover PP – Black
Handle PP – Red
Electrical Specification
Rated Capacity (20 Hour Rate @ 4.00 A) 80 Ah
Reserve Capacity 125 Min.
Cold Cranking Performance @ -18˚C (0˚F) 650 A
Terminal Design Cell Layout
Type ØD
Positive Negative
T2
