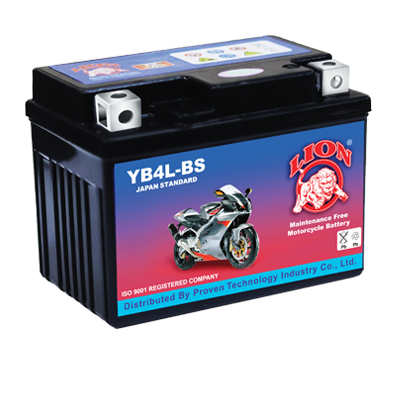

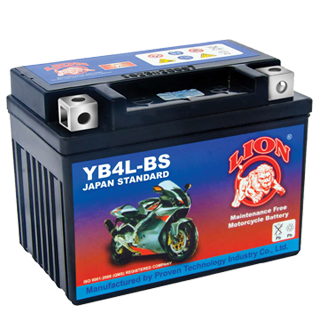

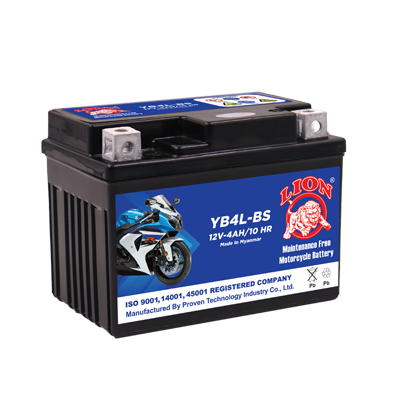

YB4L-BS(12V4AH)

Dimensions (mm) Physical Specification Physical Specification Nominal Voltage 12 V Nominal Capacity (10HR) 4AH Dimension Length 113±2mm (4.45 inches) Width 70±2mm (2.76 inches) Container Height 85±2mm (3.35 inches) Total Height (With Terminal) 85±2mm (3.35 inches) Weight Battery(with acid): Approx 1.5 kg (3.30lbs) Electrolyte: Approx 0.24kg (0.53lbs) Sealed and non-spillable AGM battery Maintenance-free Powerful 40 cold cranking amps Electrical Specification Electrical Specification Rated Capacity 10 hour rate (0.40 A) 5 hour rate (0.66 A) 2 hour rate (1.40 A) 1 hour rate (2.40 A) 05 hour rate (4.32 A) 4.00AH 3.28AH 2.80AH 2.40AH 2.16AH Capacity affected by Temperature 40°C (104°F) 25°C (77° F) 0° C (32° F) -15°C (5° F) 106% 100% 86% 65% Self Discharge Approximately 3% per month (25°C (77°F)) Charging Methods Full Charge Constant-Voltage Charge: Initial charging current: less than 1.2A Voltage: 14.40 V ~ 15.00 V at 25°C (77°F) Charging time : 15~18h Constant - Current Charge: Charging current: 0.1C10=0.40A, when charging voltage up to 14.40V, continue to charge 4h Floating Charge No limit on Initial charging current Voltage: 13.50V ~ 13.80 V at 25°C (77°F) Discharged Characteristics @ 25˚C (77˚F) Standard Terminal (mm)

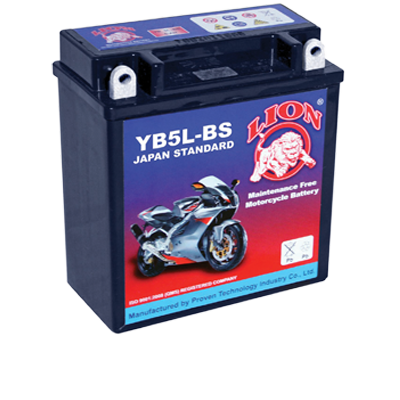

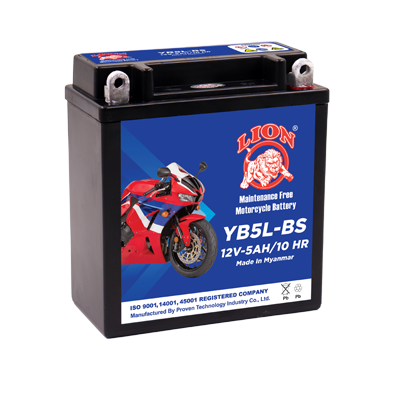

YB5L-BS (12V5AH)

Dimensions (mm) Physical Specification Physical Specification Nominal Voltage 12 V Nominal Capacity (10 Hour Rate) 5 Ah Dimension Length 120± 2mm (4.68 inches) Width 59± 2mm (2.32 inches) Container Height 130± 2mm (5.12 inches) Total Height (With Terminal) 130± 2mm (5.12 inches) Weight (approximate) Battery(with a cid): Approx 1.76kg (3.88lbs) Electrolyte: Approx 0.39kg (0.86lbs) * Sealed and non-spillable AGM battery * Maintenance-free * Powerful 50 cold crank ing amps Electrical Specification Electrical Specification Rated Capacity 10 hour rate (0.50 A) 5 hour rate (0.82 A) 2 hour rate (1.75 A) 1 hour rate (3.00 A) 0.5 hour rate (5.40 A) 5.00AH 4.10AH 3.50AH 3.00AH 2.70AH Capacity affected by Temperature 40˚ C (104˚ F ) 25˚ C (77˚ F ) 0˚ C (32˚ F ) -15˚ C (5˚ F ) 106% 100% 86% 65% Self Discharge Approximately 3% per month (25˚ C (77˚ F )) Charging Methods Full Charge Constant-Voltage Charge: Initial charging current: lessthan 1.5A Voltage: 14.40 V ~ 15.00 V at 25˚C (77˚ F) Charging time: 15 ~18h Constant-Current Charge: Charging current: 0.1 C10=0.50A, when charging voltage up to 14.40V, continue to charge 4h Floating Charge No limit on Initial charging current Voltage: 13.50 V ~ 13.80 V at 25˚ C (77˚ F) Discharge Characteristics (25˚C,77˚ F) Standard Terminal (mm)
