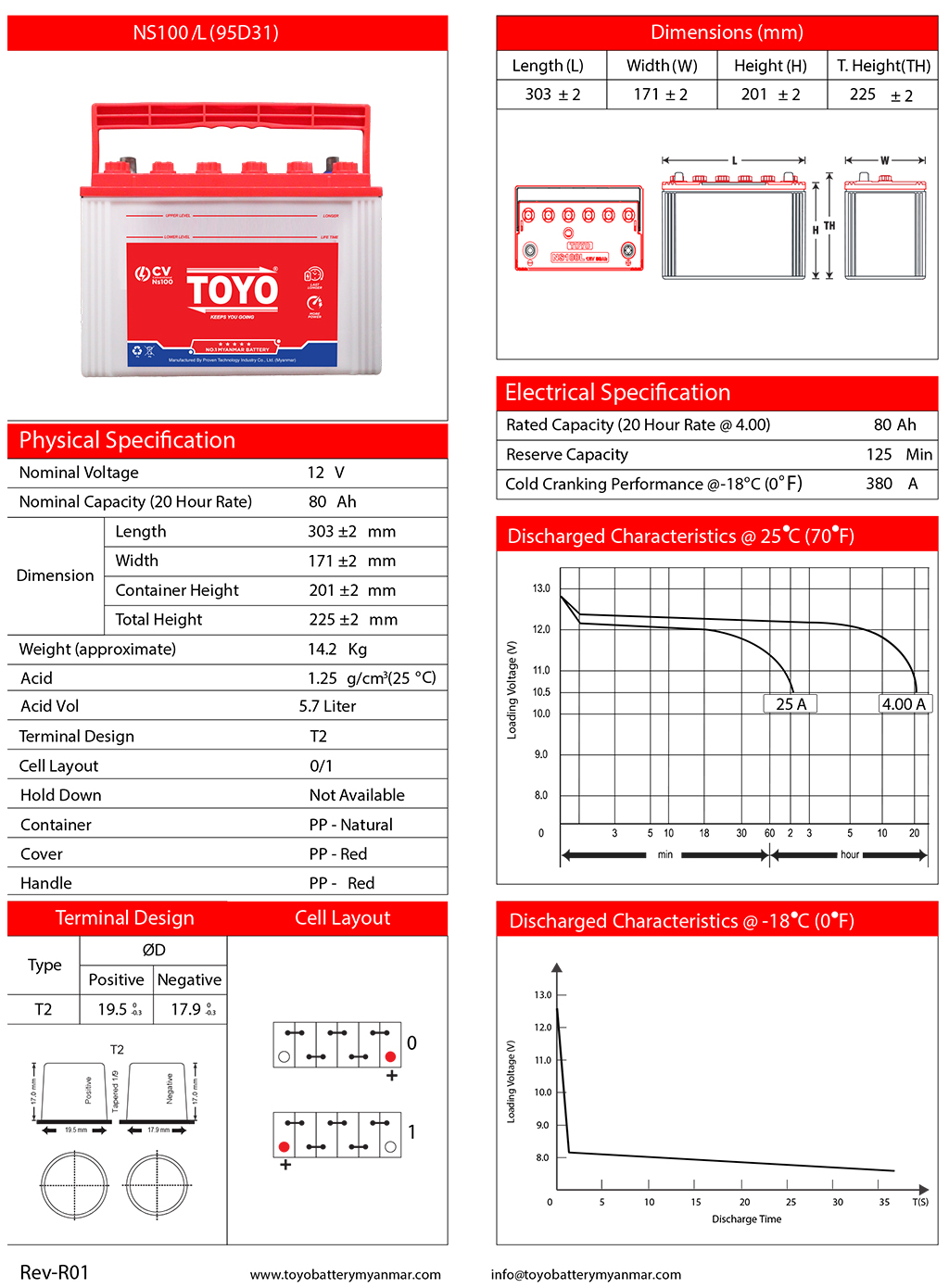

NS100/L (95D31)

Dry Charged (Conventional)
Dimensions (mm)
Length (L) Width (W) Height (H) T.Height (TH)
303 ± 2 171 ± 2 201 ± 2 225 ± 2
Physical Specification
Nominal Voltage 12 V
Nominal Capacity (20 Hour Rate) 80 Ah
Dimension Length 303±2 mm
Width 171±2 mm
Container Height 201±2 mm
Total Height (With Terminal) 225±2 mm
Weight (approximate) 14.2 Kg
Acid 1.25 g/cm3 (25°C)
Acid VOL 5.7 Liter
Terminal Design T2
Cell Layout 0/1
Hold Down Not Available
Case PP – Natural
Cover PP – Red
Handle PP – Red

—-

Terminal Design Cell Layout
Type ØD
Positive Negative
T2
Electrical Specification
Rated Capacity (20 Hour Rate @ 4.00 A) 80 Ah
Reserve Capacity 125 Min.
Cold Cranking Performance @ -18˚C (0˚F) 380 A
