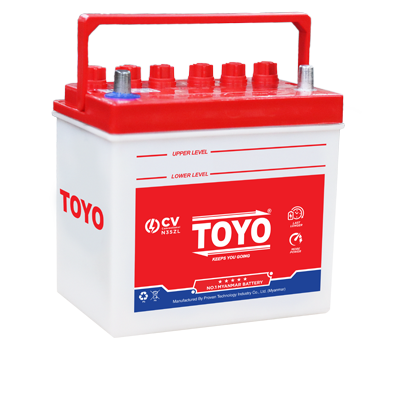

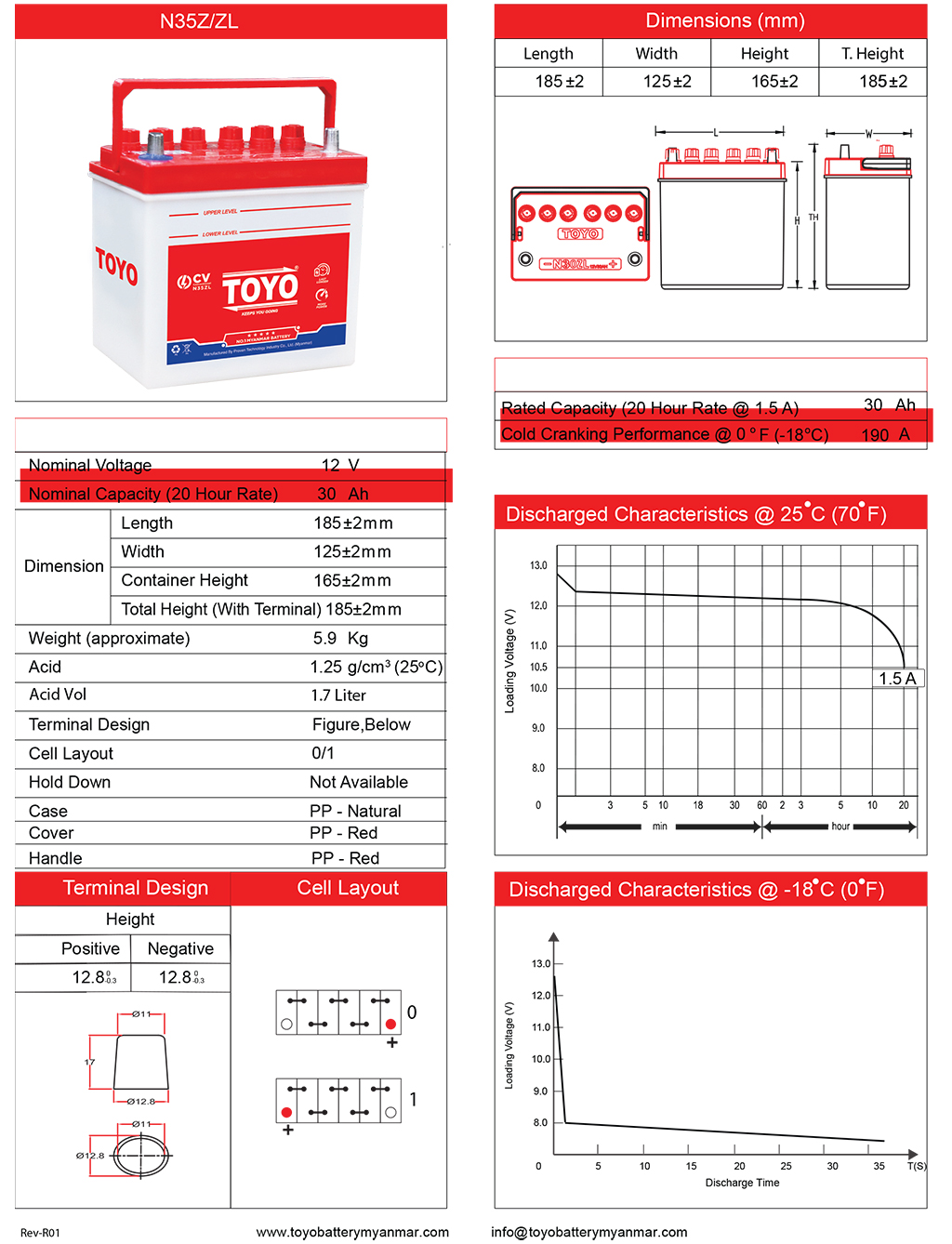

N35Z/ZL

Dry Charged (Conventional)
Dimensions (mm)
Length Width Height T.Height
185±2 125±2 165±2 185±2
Physical Specification
Nominal Voltage 12 V
Nominal Capacity (20 Hour Rate) 30 Ah
Dimension Length 185±2 mm
Width 125±2 mm
Container Height 165±2 mm
Total Height (With Terminal) 185±2 mm
Weight (approximate) 5.9 Kg
Acid 1.25 g/cm3 (25°C)
Acid VOL 1.7 liter
Terminal Design Figure,Below
Cell Layout 0/1
Hold Down Not Available
Case PP – Natural
Cover PP – Red
Handle PP – Red

Terminal Design Cell Layout
Height
Positive Negative
Electrical Specification
Rated Capacity (20 Hour Rate @ 1.5 A) 30 Ah
Cold Cranking Performance @ -18º C (0º F) 190 A
