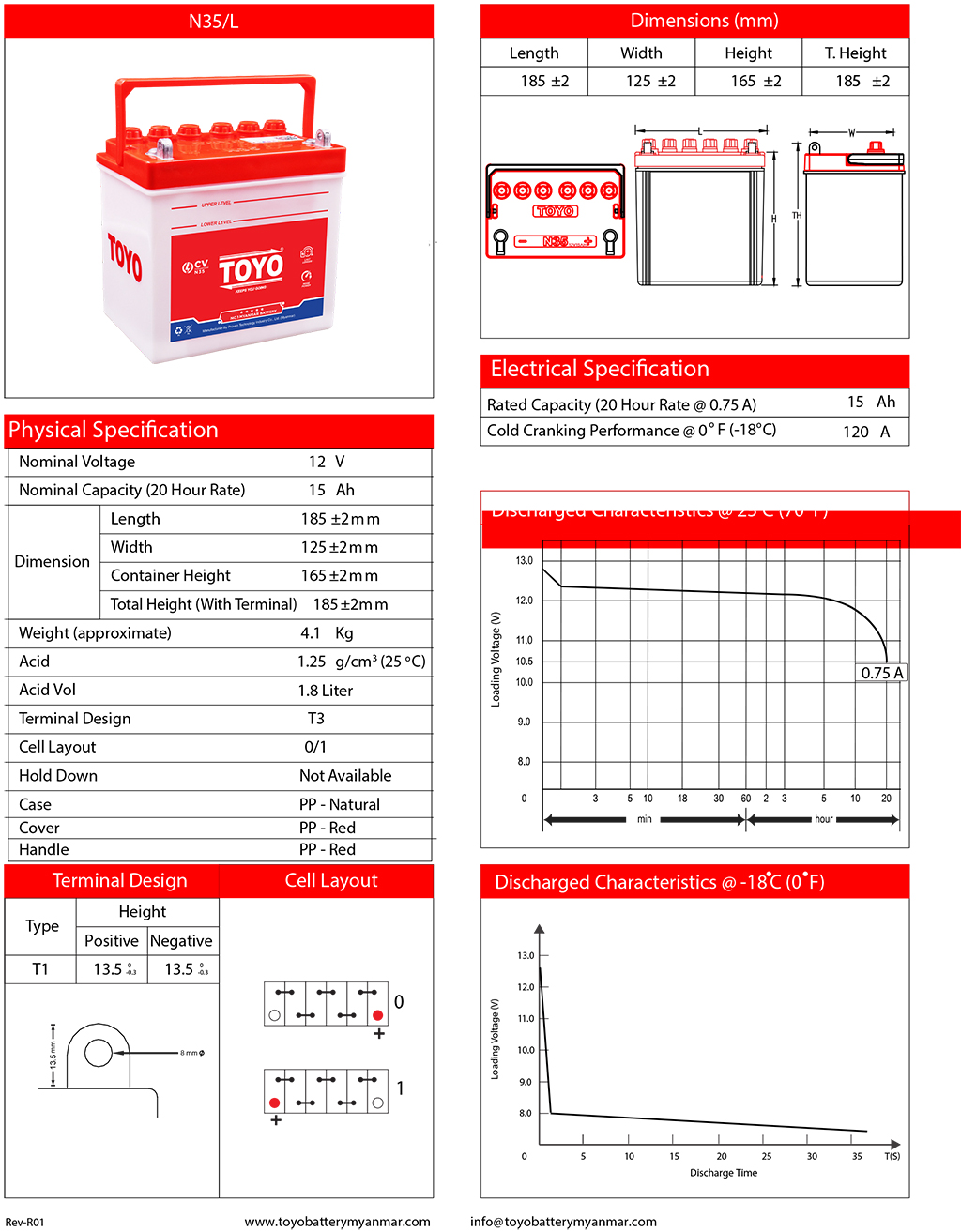

| Dimensions (mm) | |||
|---|---|---|---|
| Length | Width | Height | T.Height |
| 185±2 | 125±2 | 165±2 | 185±2 |
 |
|||
| Physical Specification | ||
|---|---|---|
| Nominal Voltage | 12 V | |
| Nominal Capacity (20 Hour Rate) | 15 Ah | |
| Dimension | Length | 185±2 mm |
| Width | 125±2 mm | |
| Container Height | 165±2 mm | |
| Total Height (With Terminal) | 185±2 mm | |
| Weight (approximate) | 4.1 Kg | |
| Acid | 1.25 g/cm3 (25˚C) | |
| Acid VOL | 1.8 liter | |
| Terminal Design | T3 | |
| Cell Layout | 0/1 | |
| Hold Down | Not Available | |
| Case | PP – Natural | |
| Cover | PP – Red | |
| Handle | PP – Red | |
—
| Terminal Design | Cell Layout | ||
|---|---|---|---|
| Type | Height |  |
|
| Positive | Negative | ||
| T1 |  |
|
|
 |
|||
| Electrical Specification | |
|---|---|
| Rated Capacity (20 Hour Rate @ 0.75 A) | 15 Ah |
| Cold Cranking Performance @ 0º F (-18º C) | 120 A |
