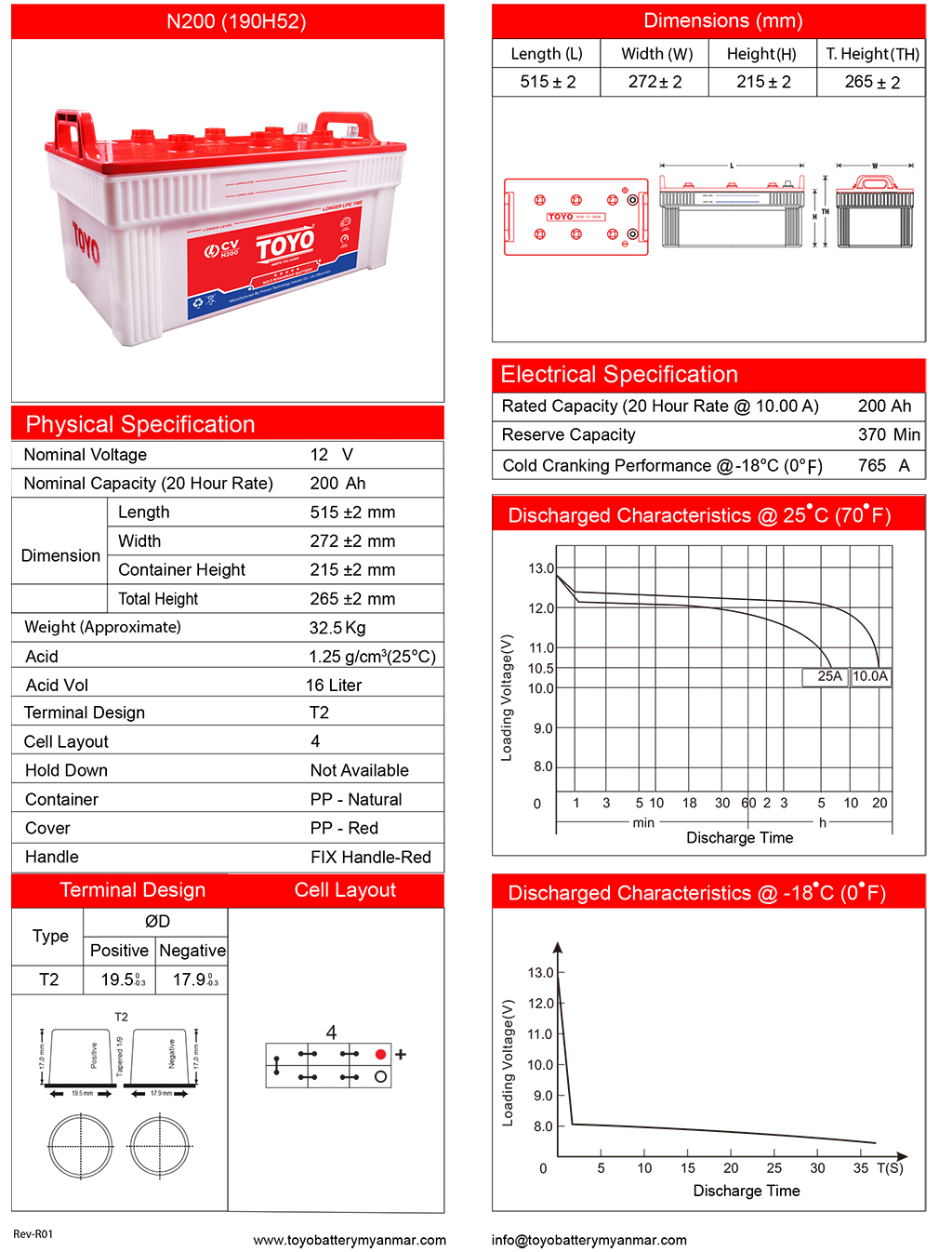

| Dimensions (mm) | |||
|---|---|---|---|
| Length | Width | Height | T.Height |
| 515±2 | 272±2 | 215±2 | 265±2 |
 |
|||
| Physical Specification | ||
|---|---|---|
| Nominal Voltage | 12 V | |
| Nominal Capacity (20 Hour Rate) | 200 Ah | |
| Dimension | Lenght | 515±2 mm |
| Width | 272±2 mm | |
| Container Height | 215±2 mm | |
| Total Height (With Terminal) | 265±2 mm | |
| Weight (approximate) | 32.5 Kg | |
| Acid | 1.25 g/cm3 (25˚C) | |
| Acid VOL | 16 Liter | |
| Terminal Design | T2 | |
| Cell Layout | 4 | |
| Hold Down | Not Available | |
| Case | PP – Natural | |
| Cover | PP – Red | |
| Handle | FIX Handle-Red | |
| Terminal Design | Cell Layout | ||
|---|---|---|---|
| Type | ØD |  |
|
| Positive | Negative | ||
| T2 |  |
 |
|
 |
|||
| Electrical Specification | |
|---|---|
| Rated Capacity (20 Hour Rate @ 10.00 A) | 200 Ah |
| Reserve Capacity | 370 Min. |
| Cold Cranking Performance @ -18˚C (0˚F) | 765 A |
