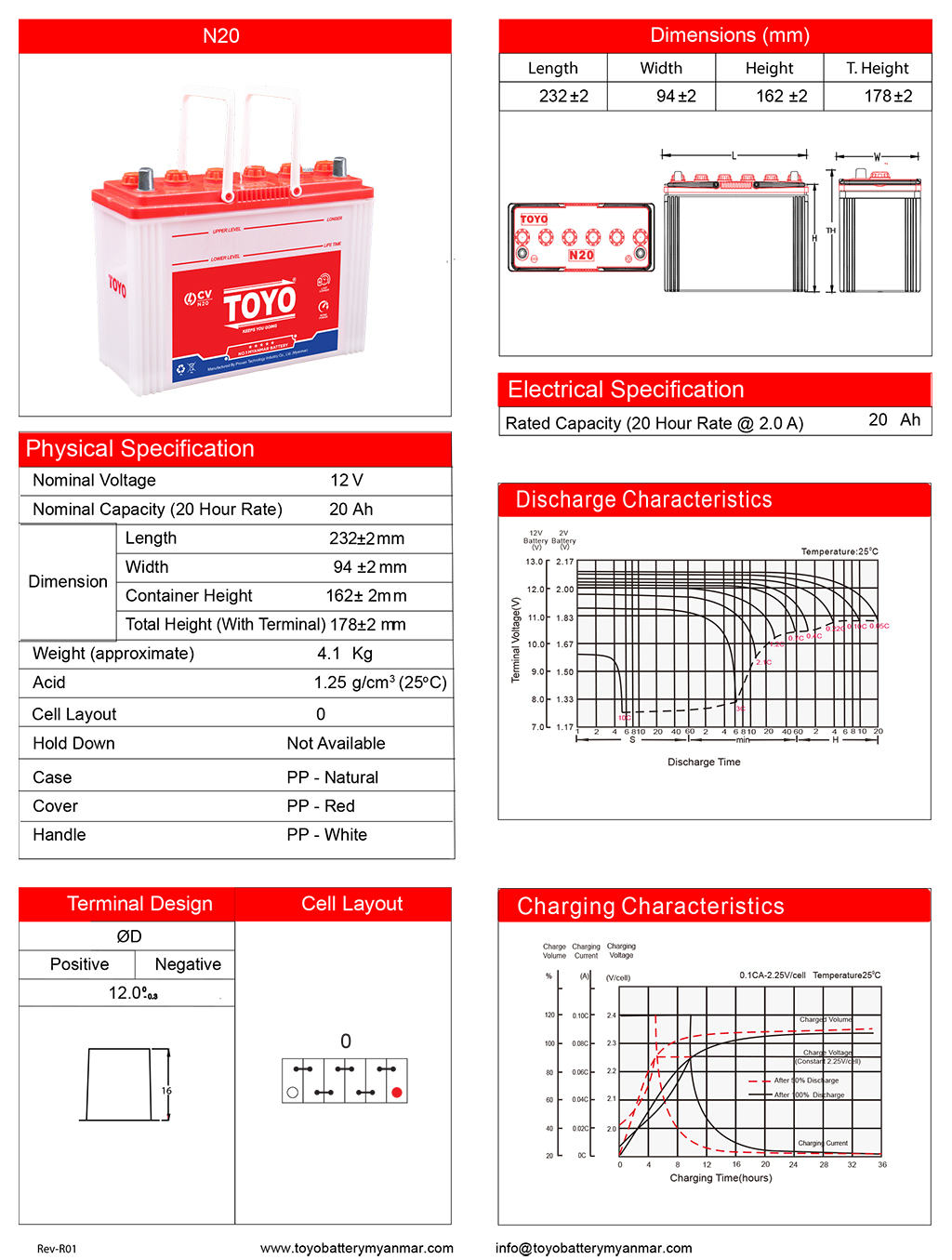

N20

Lighting
Dimensions (mm)
Length Width Height T.Height
232±2 94±2 162±2 178±2
Electrical Specification
Rated Capacity (20 Hour Rate @ 2.0 A)         20AH
Discharge Characteristics
Charging Characteristics
Physical Specification
Nominal Voltage 12 V
Nominal Capacity (20 Hour Rate) 20 Ah
Dimension Length 232 ± 2 mm
Width 94 ± 2 mm
Container Height 162 ± 2 mm
Total Height (With Terminal) 178 ± 2 mm
Weight (approximate) 4.1 Kg
Acid 1.25 g/cm³ (25˚ C)
Cell Layout 0
Hold Down Not Available
Case PP-Natural
Cover PP-Red
Handle PP-White
Terminal Design Cell Layout
ØD
Positive Negative
