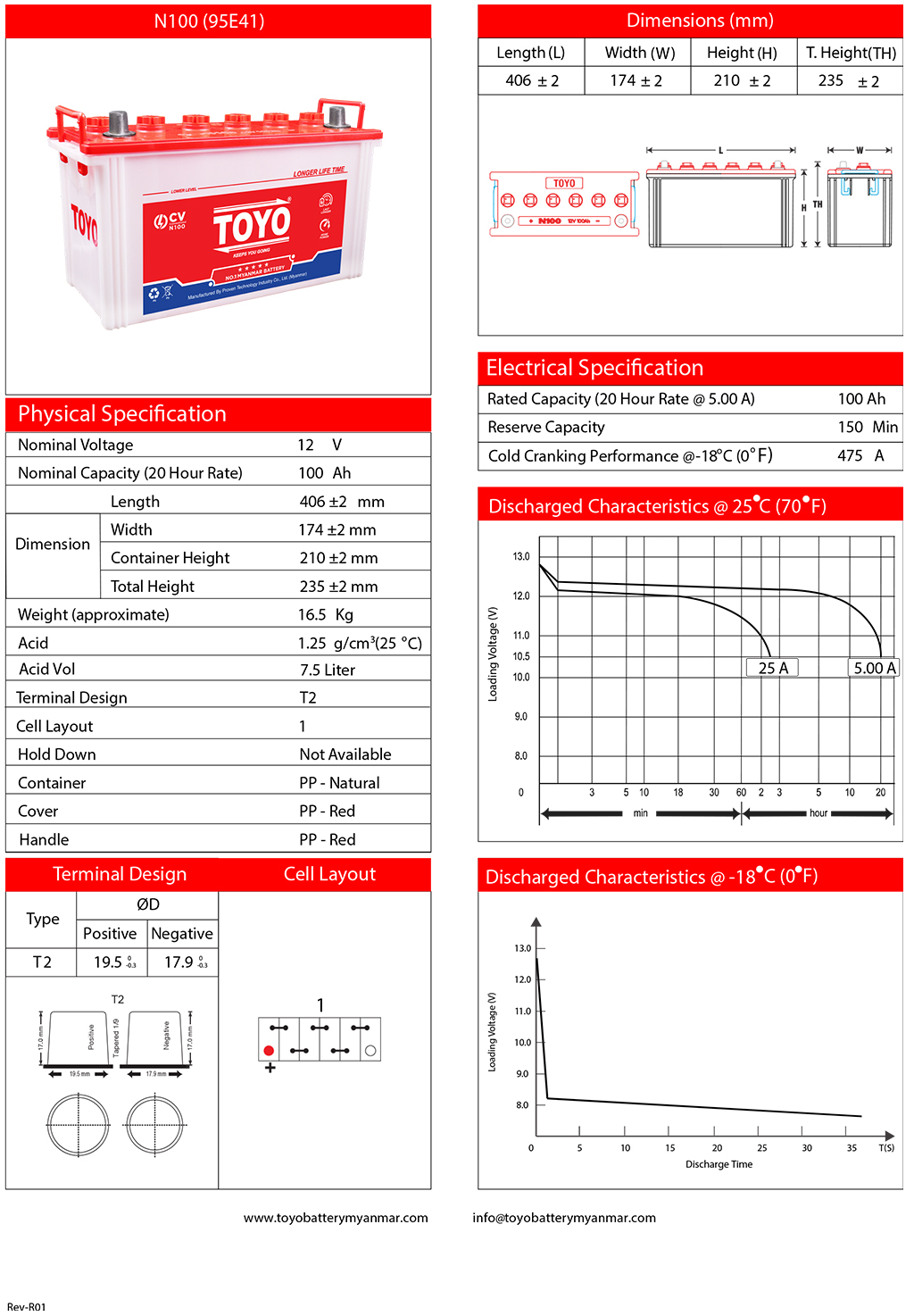

N100 (95E41)

Dry Charged (Conventional)
Dimensions (mm)
Length(L) Width(W) Height(H) T.Height(TH)
406±2 174±2 210±2 235±2
Physical Specification
Nominal Voltage 12 V
Nominal Capacity (20 Hour Rate) 100 Ah
Dimension Length 406±2 mm
Width 174±2 mm
Container Height 210±2 mm
Total Height (With Terminal) 235±2 mm
Weight (approximate) 16.5 Kg
Acid 1.25 g/cm3 (25°C)
Acid VOL 7.5 Liter
Terminal Design T2
Cell Layout 1
Hold Down Not Available
Case PP – Natural
Cover PP – Red
Handle PP – Red

—–

Terminal Design Cell Layout
Type ØD
Positive Negative
T2
Electrical Specification
Rated Capacity (20 Hour Rate @ 5.00 A) 100 Ah
Reserve Capacity 150 Min
Cold Cranking Performance @-18˚C (0˚F) 475 A
