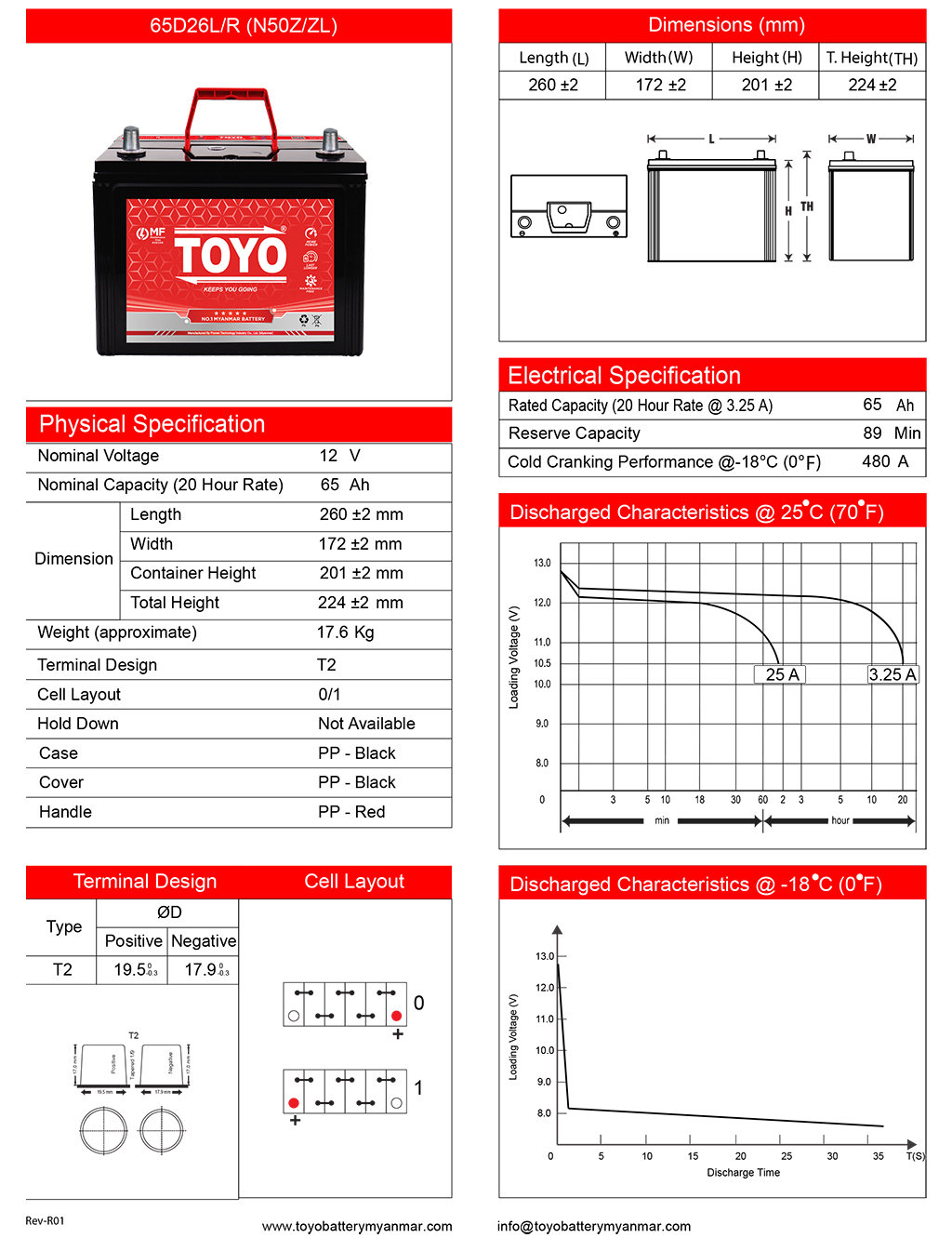

| Dimensions (mm) | |||
|---|---|---|---|
| Length | Width | Height | T.Height |
| 260 ±2 | 172 ±2 | 201 ±2 | 224 ±2 |
 |
|||
| Physical Specification | ||
|---|---|---|
| Nominal Voltage | 12 V | |
| Nominal Capacity (20 Hour Rate) | 65 Ah | |
| Dimension | Lenght | 260 ±2 mm |
| Width | 172 ±2 mm | |
| Container Height | 201 ±2 mm | |
| Total Height | 224 ±2 mm | |
| Weight (approximate) | 17.6 Kg | |
| Terminal Design | T2 | |
| Cell Layout | 0/1 | |
| Hold Down | Not Available | |
| Case | PP – Black | |
| Cover | PP – Black | |
| Handle | PP – Red | |
| Electrical Specification | |
|---|---|
| Rated Capacity (20 Hour Rate @ 3.25 A) | 65 Ah |
| Reserve Capacity | 89 Min. |
| Cold Cranking Performance @ -18˚C (0˚F) | 480 A |
| Terminal Design | Cell Layout | ||
|---|---|---|---|
| Type | ØD |  |
|
| Positive | Negative | ||
| T2 |  |
 |
|
 |
|||
