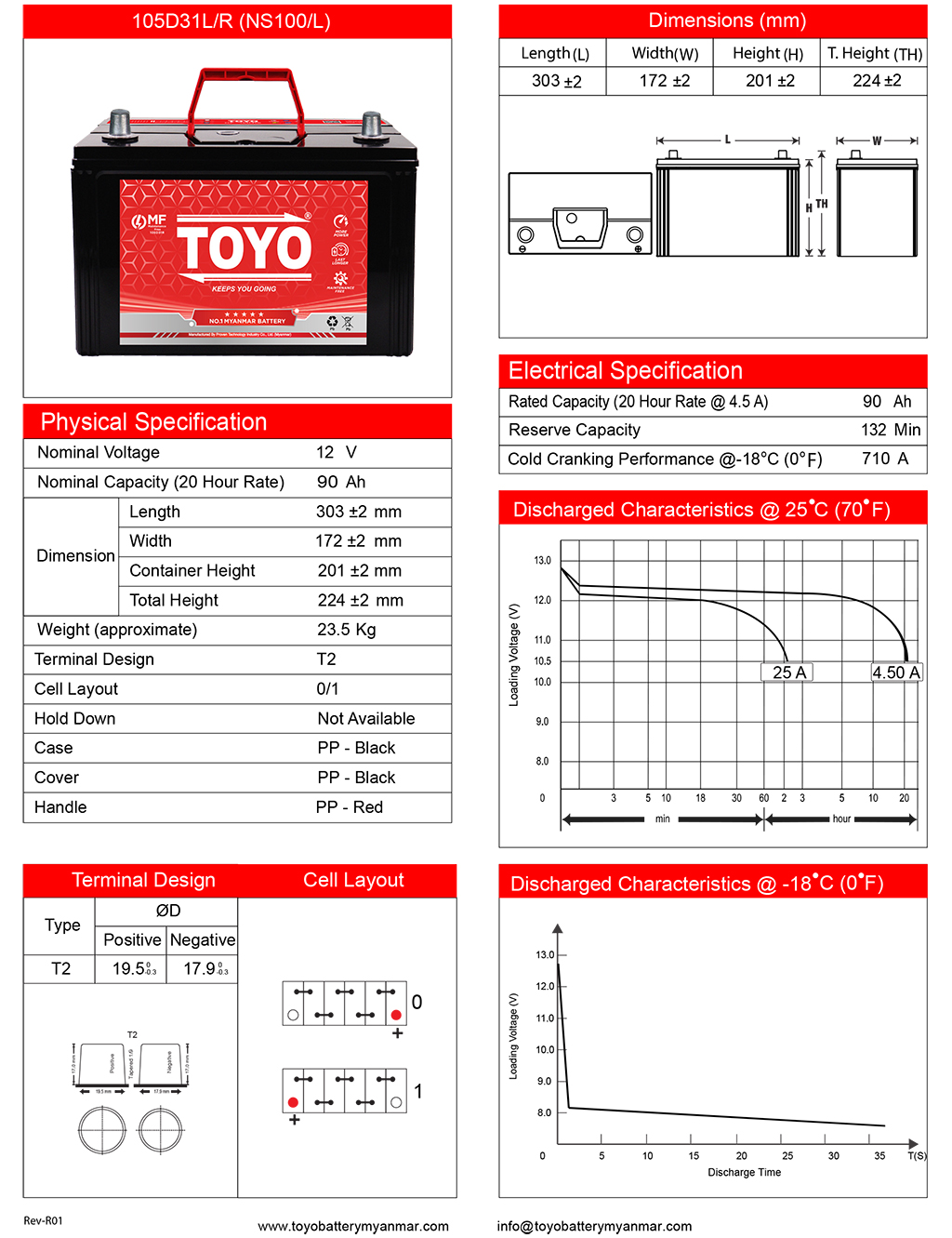

| Dimensions (mm) | |||
|---|---|---|---|
| Length (L) | Width (W) | Height(H) | T.Height(TH) |
| 303±2 | 172±2 | 201±2 | 224±2 |
 |
|||
| Physical Specification | ||
|---|---|---|
| Nominal Voltage | 12 V | |
| Nominal Capacity (20 Hour Rate) | 90 Ah | |
| Dimension | Length | 303±2 mm |
| Width | 172±2mm | |
| Container Height | 201±2 mm | |
| Total Height | 224±2 mm | |
| Weight (approximate) | 23.5 Kg | |
| Terminal Design | T2 | |
| Cell Layout | 0/1 | |
| Hold Down | Not Available | |
| Case | PP – Black | |
| Cover | PP – Black | |
| Handle | PP – Red | |
| Electrical Specification | |
|---|---|
| Rated Capacity (20 Hour Rate @ 4.50 A) | 90 Ah |
| Reserve Capacity | 132 Min. |
| Cold Cranking Performance @ -18˚C(0˚ F) | 710 A |
| Terminal Design | Cell Layout | ||
|---|---|---|---|
| Type | ØD |  |
|
| Positive | Negative | ||
| T2 |  |
 |
|
 |
|||
