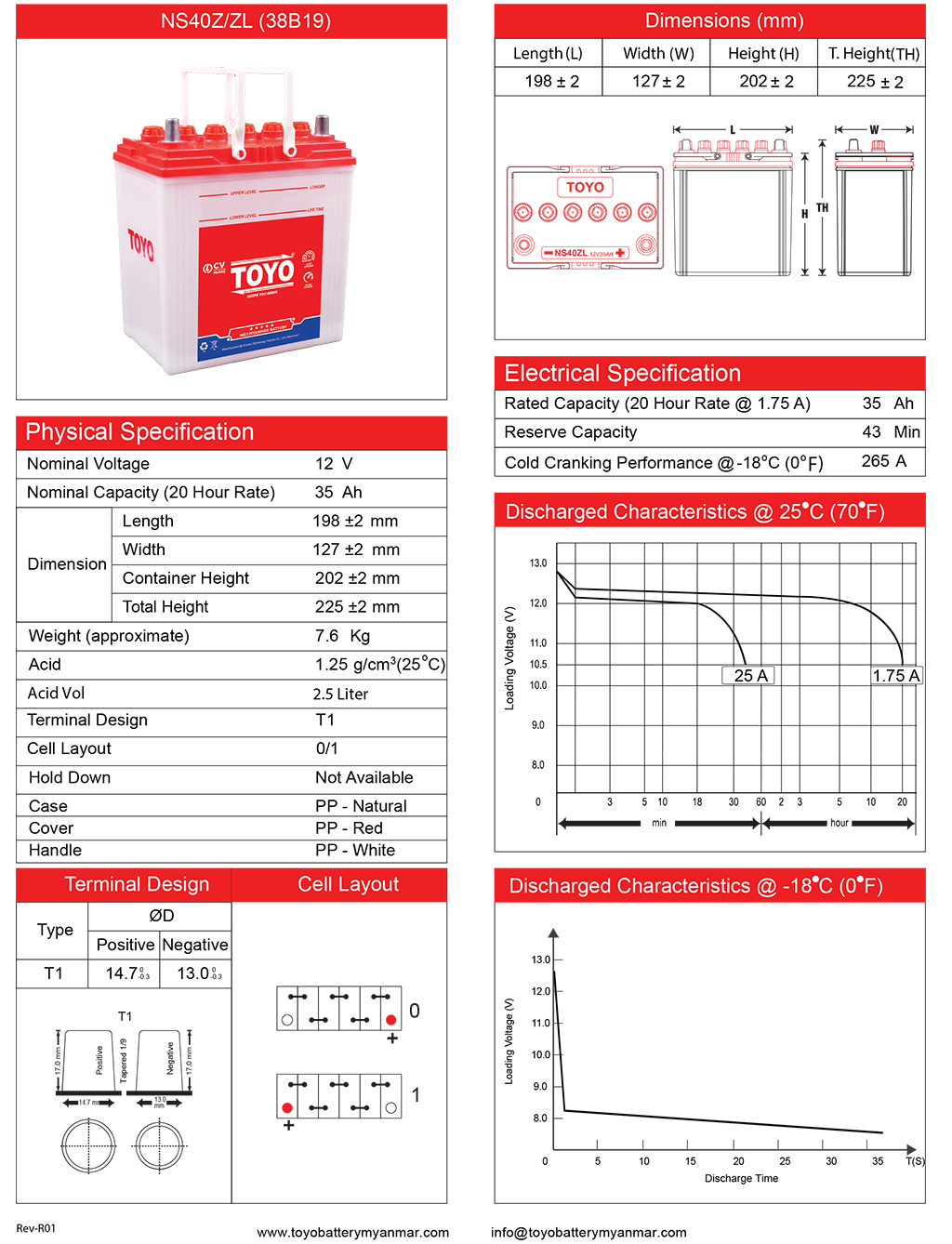

NS40Z(L) 38B19R/L (12V35AH)

Dry Charged (Conventional)
Physical Specification
Nominal Voltage 12 V
Nominal Capacity (20 Hour Rate) 35 Ah
Dimension Lenght 198 mm
Width 127 mm
Container Height 202 mm
Total Height (With Terminal) 225 mm
Weight (approximate) 7.6 Kg
Acid 1.26 g/cm3 (25oC)
Acid VOL 2.5 Liter
Terminal Design T1
Cell Layout 0/1
Hold Down Not Available
Case PP – Natural
Cover PP – Red
Handle PP – White

Terminal Design Cell Layout
Type ØD
Positive Negative
T1 14.7°-0.3 13.0° -0.3
Dimensions (mm)
Length Width Height T.Height
198 127 202 225
Electrical Specification
Rated Capacity (20 Hour Rate @ 1.75 A) 35 Ah
Reserve Capacity 43 Min.
Cold Cranking Performance @ 0oF (-18oC) 265 A
