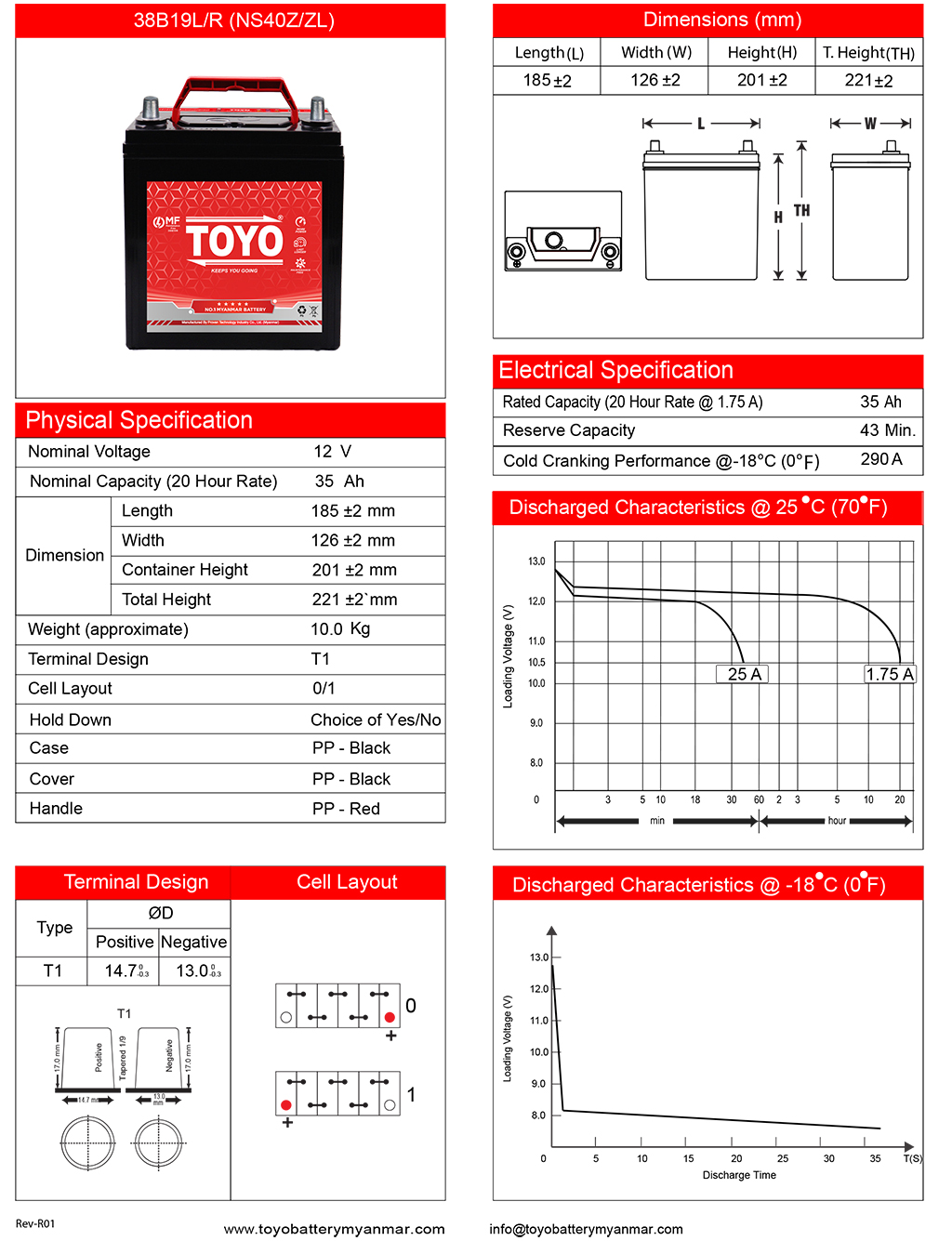

38B19R/L NS40Z(L) (12V35AH)

Maintenance Free
Dimensions (mm)
Length Width Height T.Height
185 126 201 221
Physical Specification
Nominal Voltage 12 V
Nominal Capacity (20 Hour Rate) 35 Ah
Dimension Lenght 185 mm
Width 126 mm
Container Height 201 mm
Total Height (With Terminal) 221 mm
Weight (approximate) 10.0 Kg
Acid 1.28 g/cm3 (25oC)
Terminal Design T1
Cell Layout 0/1
Hold Down Not Available
Case PP – Black
Cover PP – Black
Handle PP – Red
Electrical Specification
Rated Capacity (20 Hour Rate @ 1.75 A) 35 Ah
Reserve Capacity 43 Min.
Cold Cranking Performance @ 0oF (-18oC) 290 A
Terminal Design Cell Layout
Type ØD
Positive Negative
T1 14.7°-0.3 13.0° -0.3
